ZEISS PENTERO 800 S

Visual Certainty
Seamless Performance
Integrated Connectivity

Designed for demanding microsurgery

Considering the ever-evolving challenges in today’s digital age, we reimagined the iconic PENTERO® platform to support you in elevating your microsurgical interventions to greater heights. The Advanced Visualization System assists you during surgery for increased efficiency and effectiveness by offering Visual Certainty, Seamless Performance, and Integrated Connectivity with leading digital solutions.

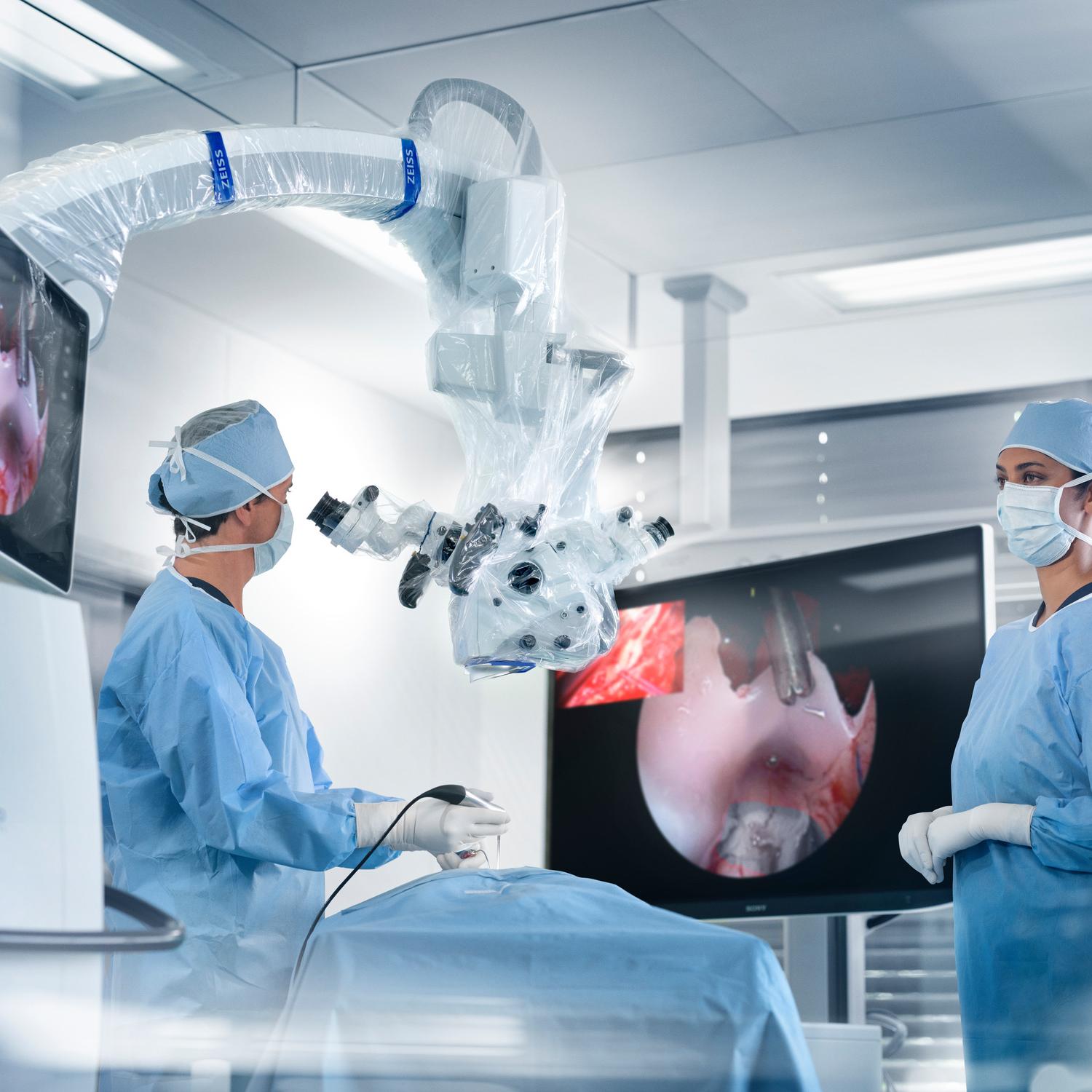

Visual Certainty

ZEISS PENTERO 800 S provides Visual Certainty at each step of the surgical procedure. It combines a fully integrated 4K 3D camera system with excellent ZEISS optics and further extends your surgical view, thus enabling a consistently clear view of the detailed anatomy.

ZEISS PENTERO 800 S provides:
● Digital Hybrid Visualization - Switch between exoscopic and optical mode
● Depth+ - for enhanced depth of field with the new Depth+ mode
● ZEISS QEVO - The Micro-Inspection Tool
● Resolution Enhancer for demanding reconstructive surgery

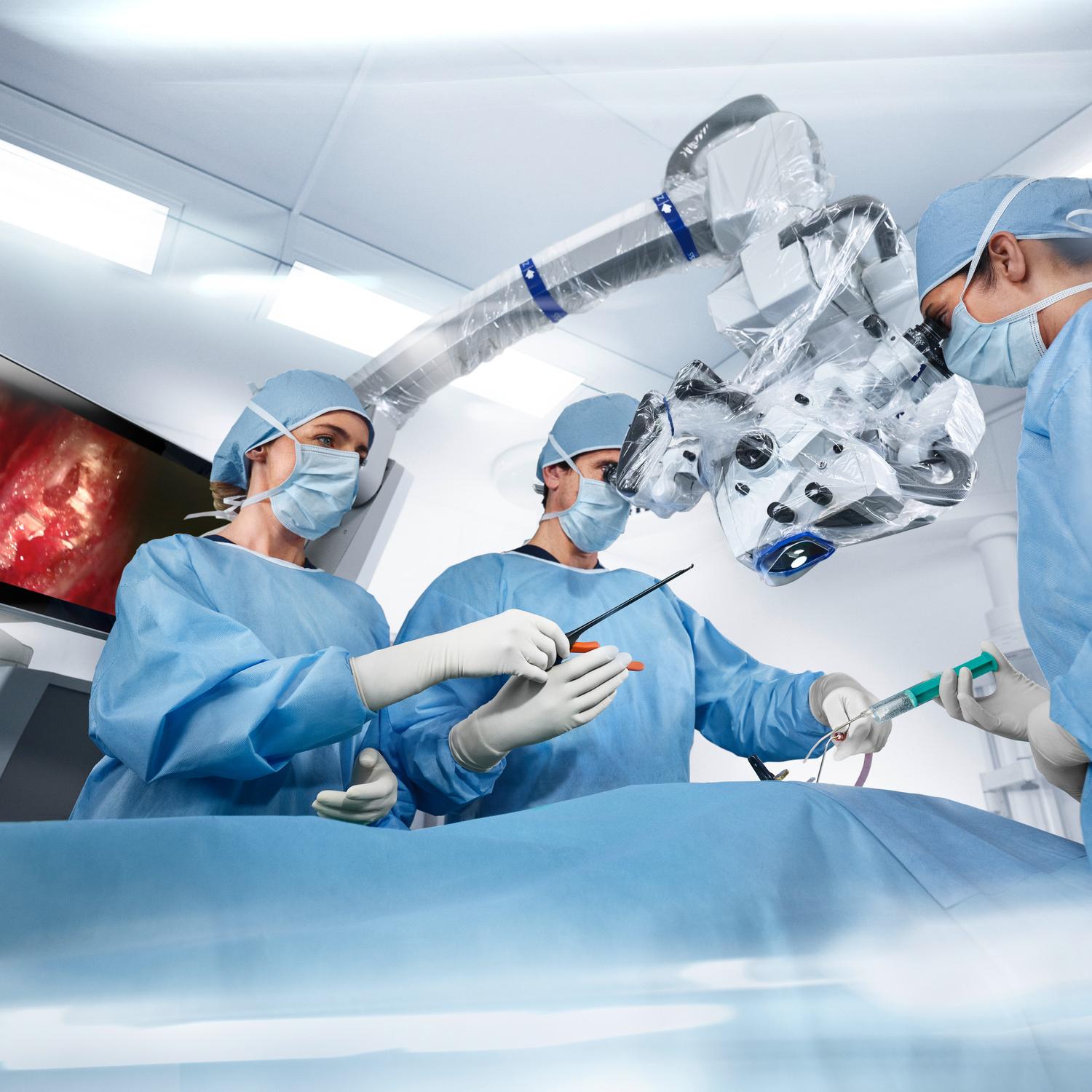

Seamless Performance

For the ZEISS PENTERO 800 S, we have optimized every device interaction alongside your clinical workflows and attuned it to your intuition. Combining the new user interface with the characteristic weightless movability of the PENTERO system, it becomes your trusted partner for real efficiency and seamless collaboration in the OR.

ZEISS PENTERO 800 S provides:
● Effortless handling to spend less time on each case
● Intuitive user interface
● Comprehensive set of extra functions to improve efficiency

Integrated Connectivity

ZEISS PENTERO 800 S enables you to instantly transfer and use surgical information data across systems by providing access to digital solutions from ZEISS. It simplifies data management, fosters peer collaboration, and seamlessly integrates with apps like ZEISS Surgical Cloud and ZEISS Livestream.

ZEISS PENTERO 800 S provides:
● Simplified patient data management
● Broadcast your expertise with ZEISS Livestream, exoscopic capabilities, recording case videos in 4K Ultra HD

Get in touch with a ZEISS representative

for more information about ZEISS PENTERO 800 S

Form is loading...

If you want to have more information on data processing at ZEISS please refer to our data privacy statement.

ZEISS PENTERO 800 S

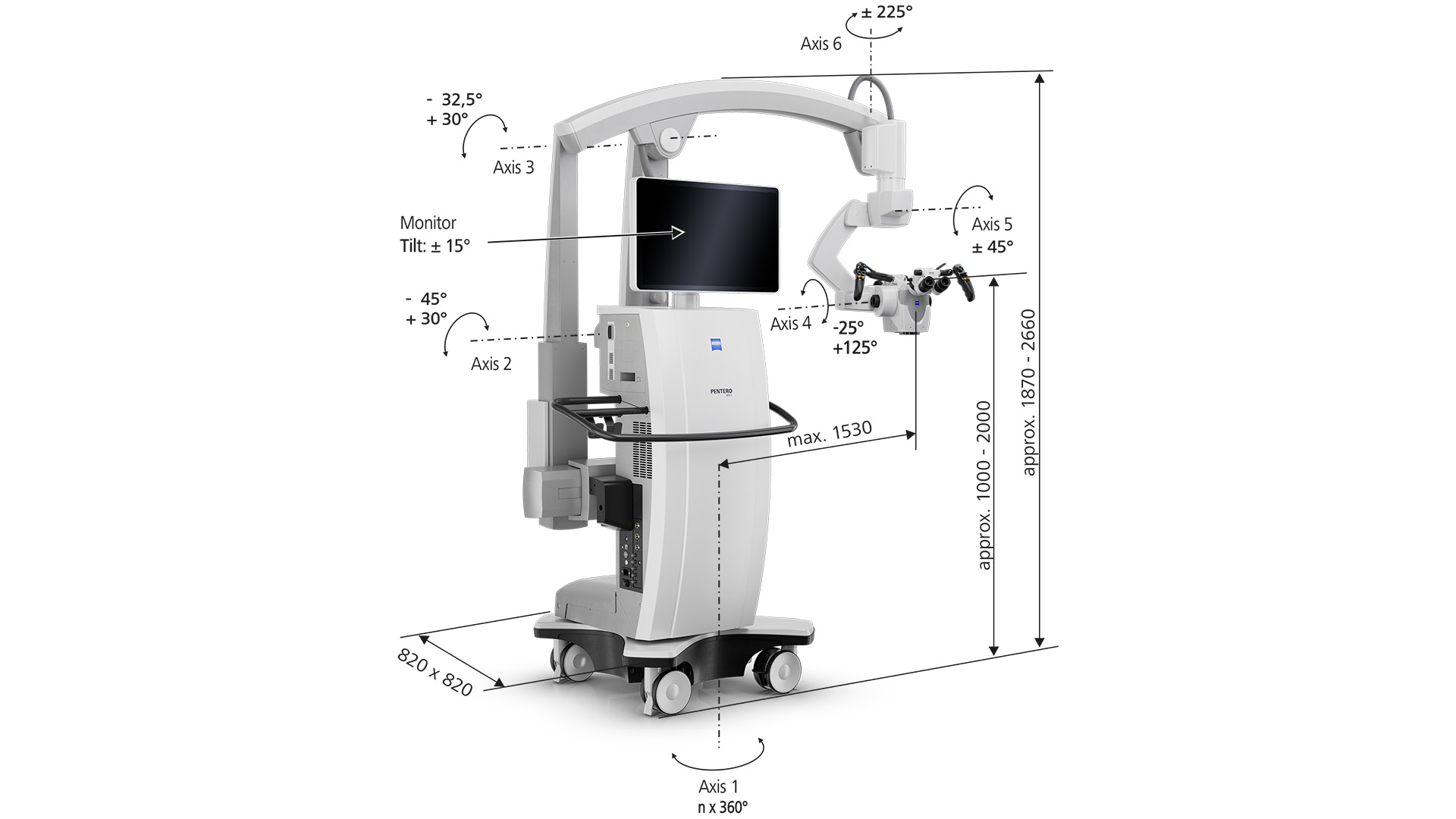

Technical Specifications

Download image (116 KB)

Specifications

ZEISS PENTERO 800 S

Technical Data
Rated Voltage	100 V - 240 V AC
Current Consumption	Max. 1.200 VA
Rated Frequency	50 Hz-60 Hz
Electrical Standard	IEC 60601-1, IEC 60601-1-2, IEC 60825, IEC 62304, CAN/CSA-C22.2 NO. 60601-1 Degree of protection against electric shock: Class 1 Class 2 laser product as per IEC 60825
Weight	Total weight of device with max. add. load: Max. 365 kg Total weight of the device incl. single-use transport box: Approx. 800 kg

	Packages	Standard	Spine Comfort	P&R Comfort
System	PENTERO 800 S basic system	●	●	●
Main Tubes	Straight binocular tube 180° tiltable tube Foldable Tube f170/f260	o o o	□ o o	□ – ●
Eyepieces	10x widefield eyepieces 12,5x widefield eyepieces	o o	o o	– o
Focus	Laser Autofocus	□	●	●
Working Distance	200 – 500 mm 200 – 625 mm	● □	– ●	– ●
Illumination	Xenon – Fully integrated Xenon light source with automatic lamp exchange	●	●	●
Co-Observation	Face-to-face with StereoBridge Left/right with stereo co-observer	□ □	● □	● □
Tube for co-observation	Straight binocular tube 180° tiltable tube Foldable Tube f170/f260	o o o	o o o	o o o
Balance	AutoBalance	●	●	●
XY-Movement	Angular movement with joystick or foot pedal	□	●	●
Video System	4K Video Package – Fully integrated 3-chip 4K camera, 2160p 4k 3D Video Package – 2x fully integrated 4K 3Chip camera, 2160p	o o	o o	o o
Video Options	Video Recording HD Video-In External 55” 4K 3D monitor with monitor cart	□ □ □	● □ □	● ● □
Fluorescence3 / QEVO	INFRARED 800 with FLOW 800 Option4 YELLOW 560 BLUE 400 (not for sale in the US) QEVO (not for sale in the US)	□ □ □ □	□ □ – □	●⁵ □ – □
Visualization	Integrated Depth+ MultiVision Resolution Enhancer	– □ –	● □ –	– □ □
Networking & Storage	Integrated 1TB hard drive WLAN package ZEISS Surgical Cloud and ZEISS Livestream Preparation ZEISS Smart Services Package – Connectivity for ZEISS Smart Services Shared Network Package – Storage on shared network directories DICOM Package – Patient data exchange with PACS system via DICOM LAN interface	● ● □ ● □ □ □	● ● □ ● □ □ □	● ● □ ● □ □ □
Navigation	Navigation Package	□	□	□
Foot Control Panel	Foot Control Panel wired / wireless	□	□	□

● Basic
o Configurable
□ Option
